Inspect a layout through MCP

View raw Markdown

Use Inspector MCP search, node reads, relationships, process data, and viewport evidence to investigate a Visual Components layout.

Investigation pattern

Start broad, keep the returned node IDs and ancestor IDs, then read only the objects that answer the investigation question. This sequence keeps the MCP conversation grounded in the current layout and makes stale-node failures easy to recognize.

Find a target

1. Call vc_session to record the current session and validate any cached node IDs.
2. Call vc_search with a case-insensitive regular expression when the target is known by name or text. Use a preset such as components, processModeling, interfaces, or properties to narrow the question.
3. Call vc_find_by_type when the target is better described by an interface type, component category, or property filter.
4. Keep ancestorNodeIds from the result when a later navigation operation needs the object's context.

For example, a component search for Lifter in the public warehouse layout returned the Lifter component as ISimComponent, with node ID n3 and ancestors n2, world. Node IDs belong to the current MCP session; validate them again after a layout boundary or when a read reports a stale ID.

Read the evidence

Use the smallest tool that answers the next question:

• vc_read returns names, interface types, properties, state, position, transform, bounds, and searchable text values. It accepts a batch of node IDs and can return expanded ancestors.
• vc_browse walks children, behaviors, properties, interfaces, programs, statements, or all available references from a known node. Paginate when hasMore is true.
• vc_relationships follows parent, child, interface, signal, transport, process, and conveyor relationships in a chosen direction.
• vc_geometry_statistics ranks geometry by size, density, feature-tree complexity, and optional shared-instance impact. An incomplete response supplies a continuation token; continue it before interpreting rankings.
• vc_messages filters the Visual Components message log by level and text.
• vc_session reports simulation state, session start time, registered node count, and node-ID validation results.

The live Lifter read returned its ConveyorSpeed, TotalHeight, world position, transform, and bounds. Its relationship query identified connected conveyor interfaces, while vc_process_model reported that it is a conveyor but not a Process Modeling component.

Investigate process and space

Use these read-focused queries when the question crosses object boundaries:

• vc_process_model provides Process Modeling overviews, flow-group details, resource participation, process-group references, transport chains, and conveyor network topology.
• vc_product_flow reports product, need, feed, and matching state. A layout with no active products can validly return zero counts.
• vc_spatial finds nodes near a position, intersects a world-bounds region, or checks collision candidates. Coordinates and tolerances are in millimeters.
• vc_summarize produces a brief, standard, or detailed summary for the layout or a node.
• vc_ecat searches and reads catalog entries without inserting anything into the active layout.
• vc_python_scripts lists or reads layout-owned scripts. Reading script text is observational; exporting it is a separate file-writing operation.

Interpret an empty or unavailable result in context. For example, the public warehouse layout reported no active product-flow matches because its simulation was stopped at time 0.0; that result does not prove that a Process Modeling definition is absent.

Confirm the visual result

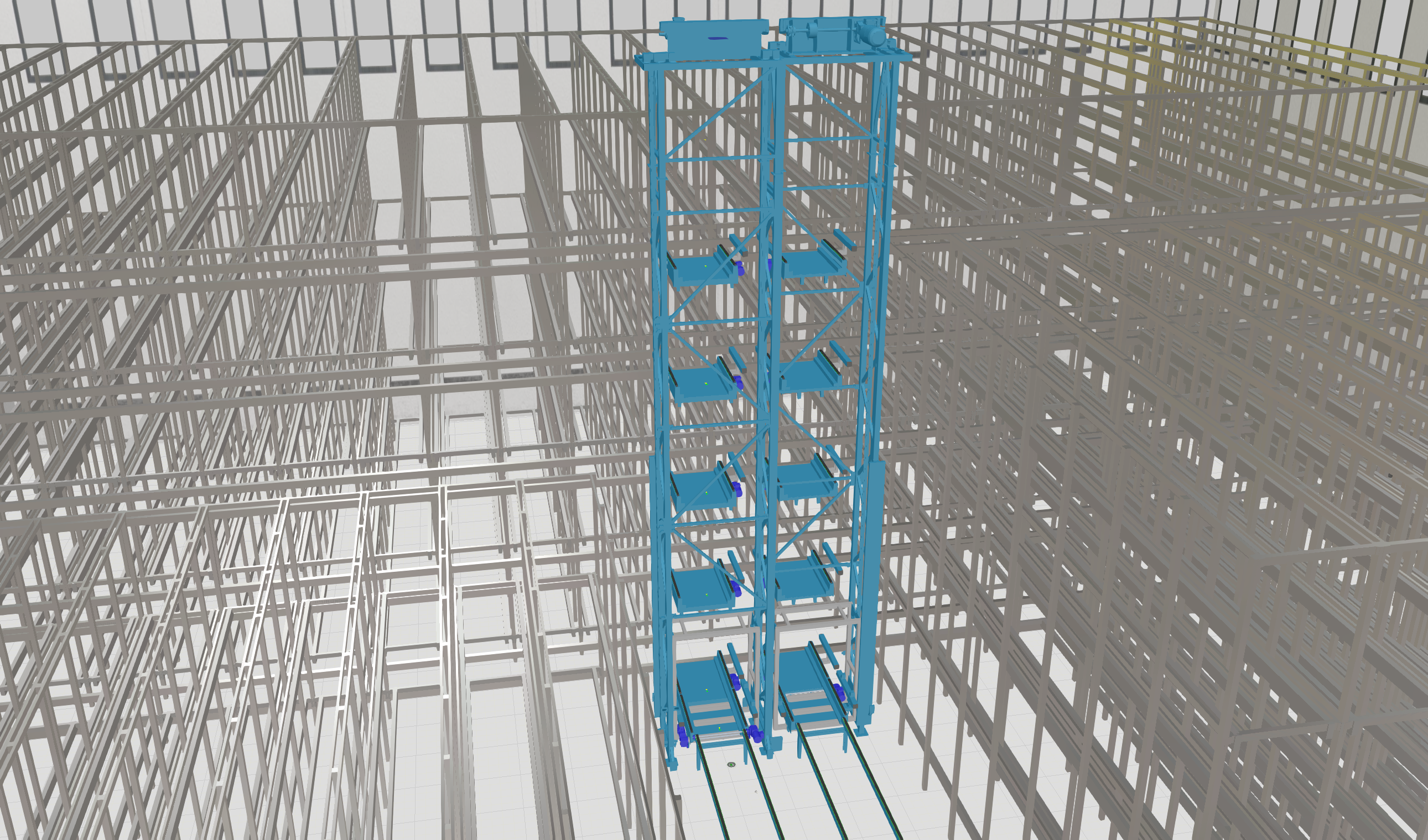

Use vc_get_selection to check the current VC selection, vc_camera to read the camera or focus the viewport, and vc_screenshot with returnMode: "inline" when the client needs model-visible image content. vc_screenshot does not include UI overlays. vc_user_interface can read application context and panel state, and can capture the viewport with overlays when the Direct3DViewportViewModel panel is requested.

These operations can change the selection, camera, focus mode, or visible UI without editing the layout. Treat them as UI-state actions and inspect the result before continuing.

Result checklist

• The session ID is current and the node IDs validate.
• The returned object type and ancestor path match the intended target.
• Properties, geometry, relationships, and process results answer the same investigation question rather than unrelated inventory questions.
• A focused screenshot makes the selected object and its layout context recognizable.
• No action requiring simulation control, script changes, layout edits, or saving was needed for the read-focused investigation.

See Inspector MCP tool access for the full capability and risk boundary. See Connect to the Inspector MCP server when the endpoint is not running.
